PRODUCT DESCRIPTION

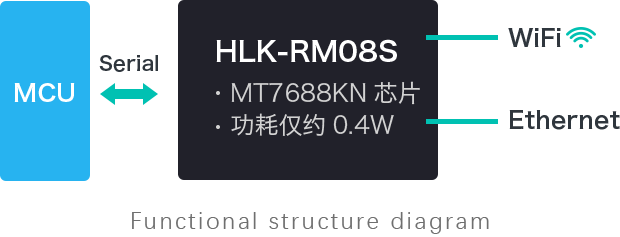

HLK-RM08S is an embedded WiFi module conforming to network standards based on a universal serial interface, with a built-in TCP/IP protocol stack, which can realize the mutual conversion between serial port, Ethernet, and wireless network (WIFI) interfaces.

Can quickly solve the user's serial device network transmission data problem, the traditional serial device does not need to change the configuration directly to the network.

Product Size

PRODUCT SIZE

ModelHLK-RM08S

Size25.8*17.8*2.8

Chip solutionMT7688KN

Carrier frequency2.4GHz

Transmit power18dBm

Communication distance100m

Net weight4g

Network standard	Wireless standard: IEEE 802.11n/gb
Network standard	Wired standard: IEEE 802.3u
Wireless transmission rate	11n: up to 150Mbps 11g: up to 54Mbps 11b: up to 11Mbps
Number of channels	1-11
Frequency Range	2.4-2.4835G
Transmit power	15-20DBM
interface	5 Ethernet ports/2 serial ports/1 USB port (host/slave)/GPIO
Antenna
Antenna type	External antenna
Function parameters
WIFI working mode	Wireless network card/wireless access point/wireless router
WDS function	Support WDS wireless bridging
Wireless security	Wireless MAC address filtering
	Wireless security function switch
	64/128/152 bit WEP encryption
	WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism
Network management	Remote web management
	Configuration file import and export
	WEB software upgrade
Serial port to network
TCP connection	Maximum number of connections> 20
UDP connection	Maximum number of connections> 20
Serial port baud rate	1200~20000000bps
Other parameters
Status Indicator	Status indication
Environmental standards	Working temperature: -40-85℃
	Working humidity: 10%-90%RH (non-condensing)
	Storage temperature: -40-85℃
	Storage humidity: 5%-90%RH (non-condensing)
Other properties	Band bandwidth is optional: 20MHz, 40MHz, automatic
